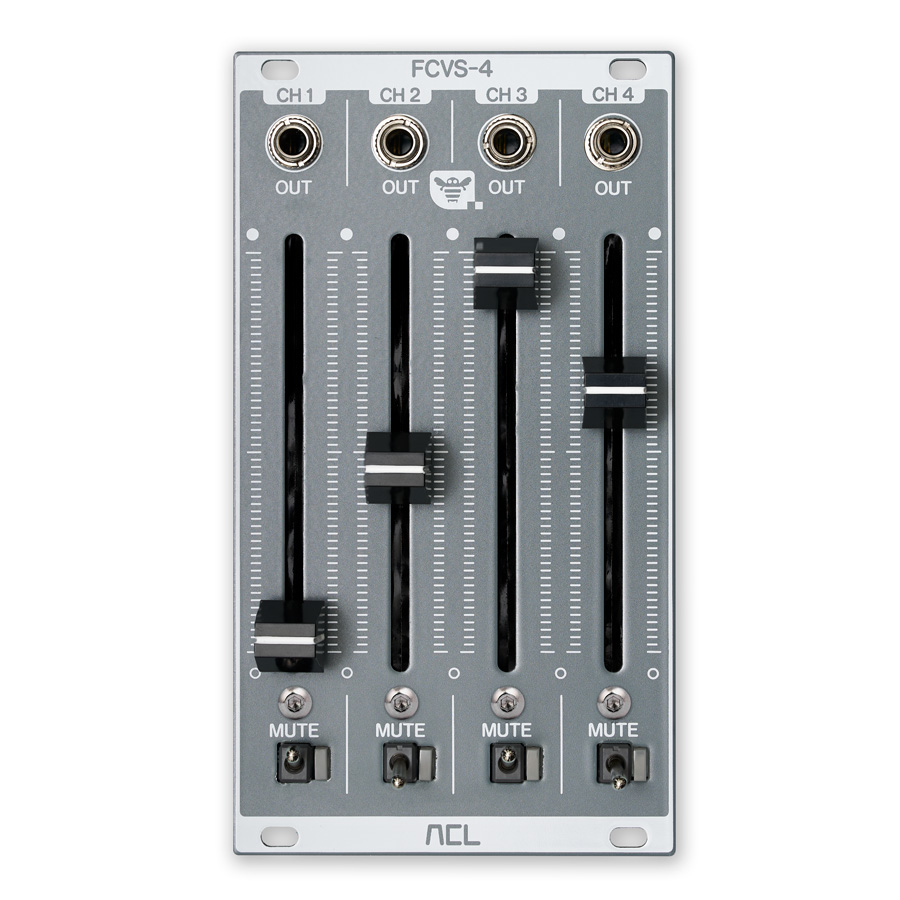

FCVS-4

The ACL Fader CV Source Module comprises 4 individual faders where each can generate a CV either going between 0 and +5V or 0 and +10V unipolar or -5V and +5V or -10V and +10V bipolar, selectable using 2 jumpers on the backside of the module.

Furthermore there are mute-switches for each channel accompanied with an dual color LED (green/red) which shows the channels mute status. When mute is activated or deactivated, short fade ramps will be generated as well as the fader itself is slightly slew-limited internally in order to generate a smooth CV.

This module is very useful to control VCA´s or VC mixers like our VC Amp mix module.

Key Features

• 4 individual 60mm faders
• Selectable voltage ranges via jumpers:
  • 0 to +5V unipolar
  • 0 to +10V unipolar
  • -5V to +5V bipolar
  • -10V to +10V bipolar
• Mute switches with dual-color LED indicators
• Smooth fade ramps during mute/unmute
• Internal slew limiting for smooth CV generation

Applications

• CV control for VCAs
• Control for VC mixers
• Manual voltage control
• Live performance control

Technical Features

• High-quality 60mm faders
• Dual-color status LEDs (green/red)
• Smooth fade transitions
• Configurable voltage ranges
• Professional-grade build quality
